Technical Analysis of Rolling Ball Tilt Switches

Author: Cheng Shengxing Electronics

Working Principle and Core Structure
A rolling ball tilt switch (also known as a steel ball switch or tilt switch) is a mechanical sensor that triggers circuits via gravity. Its core structure consists of a metal ball, conductive electrodes, and an insulating housing. When the device is horizontal, the ball rests in the center of the insulating cavity, leaving the circuit open. Once tilted beyond a set angle, the ball rolls to touch the electrodes, closing the circuit and triggering a signal.

Types and Technical Parameters

Directional Type: Responds only to tilts in specific directions (left/right, front/back). Classic models include CSX-SEN-360A and CSX-SEN-360T.
Omnidirectional Type: Triggered by tilts in any direction (e.g., CSX series).
Optical Variant: Contactless design (e.g., CSX45PS) using the ball to block an infrared light path, avoiding metal oxidation and extending lifespan.
Key parameters: tilt angle accuracy (±5°), temperature resistance (-40°C to +85°C), protection rating (IP67), and current load (≤250mA), suitable for low-current signal activation scenarios.

Advantages Over Traditional Solutions

Eco-Friendly and Safe: Completely replaces toxic mercury switches, complying with RoHS standards.
Energy-Efficient and Miniaturized: Ultra-low power consumption (μA level), with SMT-compatible packaging as small as 0.8mm.
Anti-Interference Design: Incorporates limiting steps and adjustable delay circuits (0–10 seconds) to suppress vibration-induced false triggers.

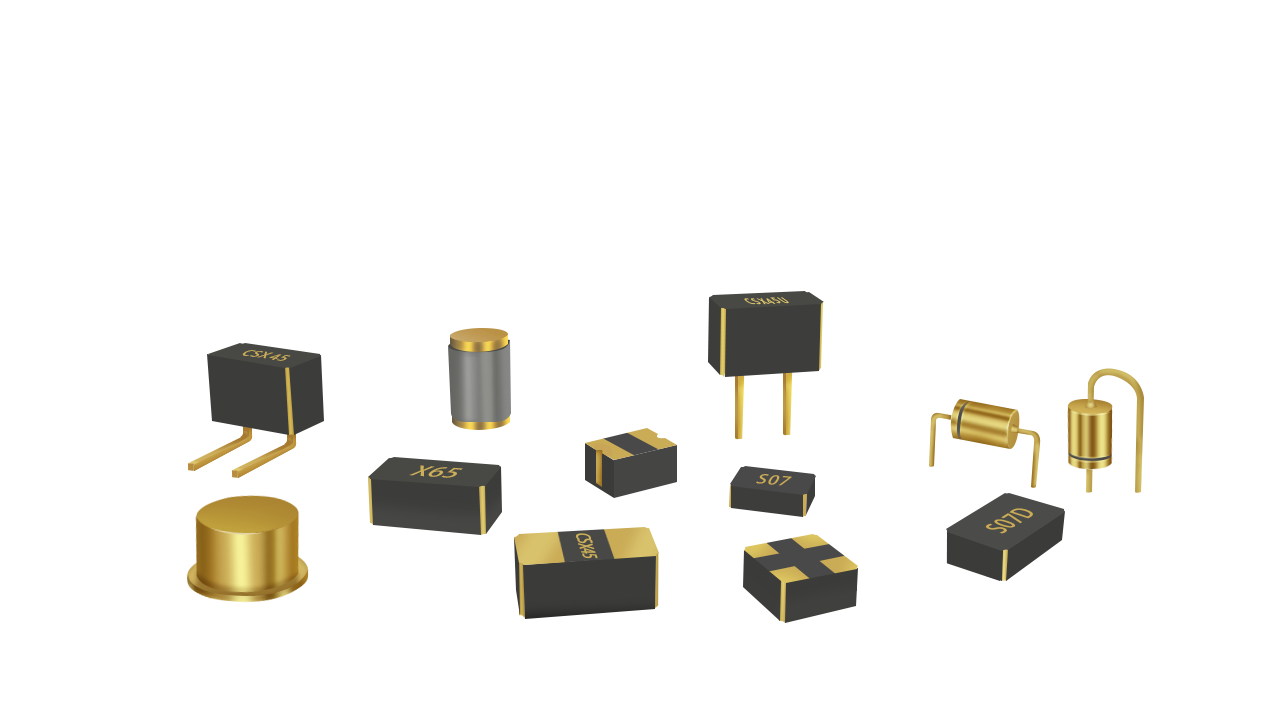

Product Innovation and Industrial Applications of ChengShengXing Technologies

Patented Technologies and Core Product Lines
Shenzhen ChengShengXing Technologies (established in 2008) specializes in the miniaturization and intelligentization of rolling ball switches, breaking traditional technological bottlenecks:

Micro-SMT Packaging: World’s smallest vibration sensors (e.g., CSX-SEN-180A), with fully automated production ensuring consistency.
Patented Tilt Sensing Solutions: CSX45 series enables 360° omnidirectional angle detection, with customizable response angles.
Industrial-Grade Reliability: CSX-SEN-300A passes rigorous testing for high-temperature resistance, shockproofing, and is used in U.S. GPS equipment.

Typical Application Scenes

Smart Home: Tilt-sensitive lighting control and appliance power management.
Industrial Automation: Machine tool status monitoring and robotic arm angle feedback.
Consumer Electronics: Portable device orientation recognition (e.g., smartwatches, game controllers).
Automotive Electronics: Car alarm systems and anti-theft device tilt detection.
Medical Devices: Portable medical instrument posture correction and data recording
