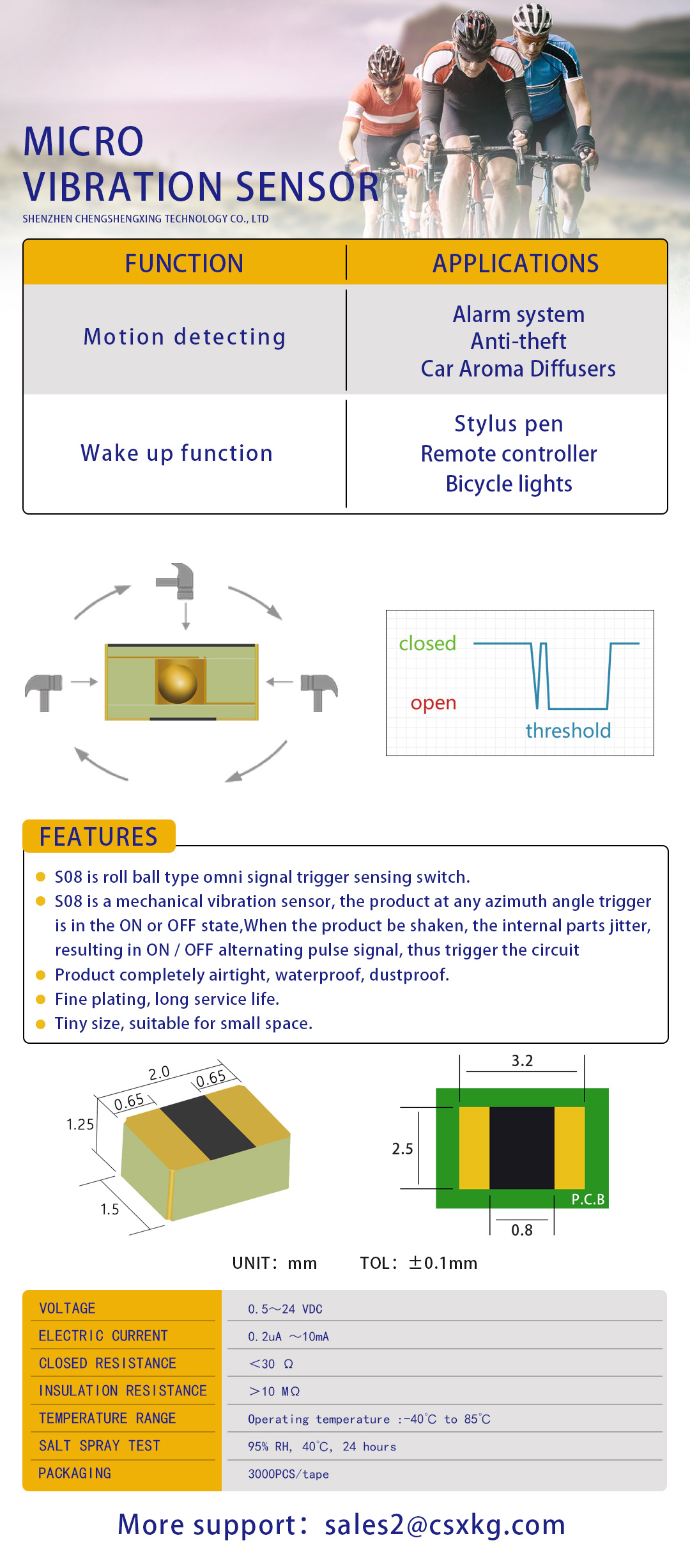

Micro vibration sensor S08
Category：
Vibration Sensor
Product Features
Omni-directional Vibration Detecting
Key Words:
Product Details
FUNCTIONS
- Omni-directional Vibration Detecting
| SIZE | 2.0 * 1.5 * 1.25 (mm) |
| Voltage | 0.5~2.4VDC |
| Current | 2uA-10mA |
| Closed resistance | <30Ω |
| Insulation resistance | >10MΩ |
| Temperature range Operating | -40℃ to 80℃ |
FEATURES
- Both Suitable for horizontal and vertical PCB.
- The S08 acts like a normally closed switch chatters open and closed as it is vibrated. Note that the S08 is not guaranteed to be closed-----occasionally the sensing mechanism may remain open when at rest.The engineer should design his or her software to look for high-to-low and low-to-high edge transitions rather than an open or closed state of the switch.
- Tiny size, suitable for small space.
- Gold-plated ball and terminals, low possibility of oxidization.
- Housing made of high insulation plastic material, free from electric conduction and rust problem.
- All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
- Simple ON and OFF signals, easy for design.
- RoHS compliance, an ideal substitute for mercury switch.
- A more economical vibration detection option than IC design solution.
- All made in China and examined before shipment.
APPLICATIONS
- GPS Tracker
- TPMS
- Alarm system, Anti-theft、Anti-tampered devices
- Bicycle computer
- RFID
- Toys
- Home automation
- Wake up systems for power saving, Suck like remote controllers
